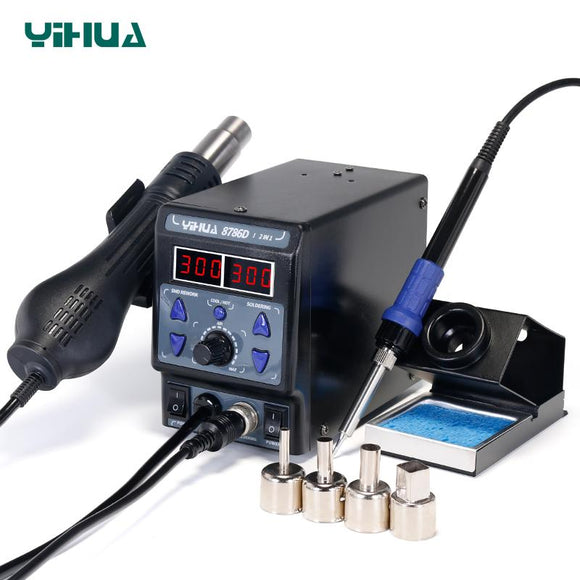

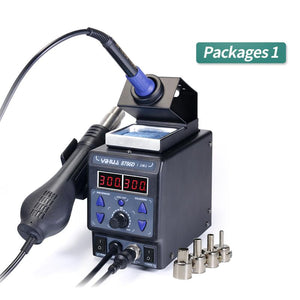

YIHUA 8786D-I SMD Soldering Station Cool Hot Air Gun Soldering Iron 2 in 1 Rework Station
Please Leave message for Voltage and AC Power adapter Type:
110V US
230V UK
220V EU
240V AU
![](https://cdn.shopifycdn.net/s/files/1/0293/1018/9706/files/YIHUA_8786D-I_SMD_Soldering_Station_Cool_Hot_Air_Gun_Soldering_Iron_2_in_1_Rework_Station.jpg?v=1597338015)
Machine
Rated voltage 240V/230V/220V/110V ±10% 50Hz/60Hz
Whole device power ≤750W
Work environment: 0~40°C
Storage temperature: -20~80°C
Storage Humidity: 35%~45%
Hot air gun part
Temperature range: 100°C~480
Temperature stability: ±2°C(Static state)
Airflow type: Brushless fan gentle wind
Airflow: 120L/min (MAX)
Soldering iron part
Work voltage: 26V±10% 50Hz/60
Temperature range: 200°C~480°C
Temperature stability: ±2°C (Static state)
Tip-to-ground impedance: <2Ω
Tip-to-ground voltage: <2mV
Application
1. Suitable for a variety of elements soldering and de-soldering such as SOIC, CHIP, QFP, PLCC, BGA (especially suitable for mobile phone board and cable de-soldering).
2. For thermal shrinkage, drying, paint, adhesive removal, thawing, preheating, welding glued.
