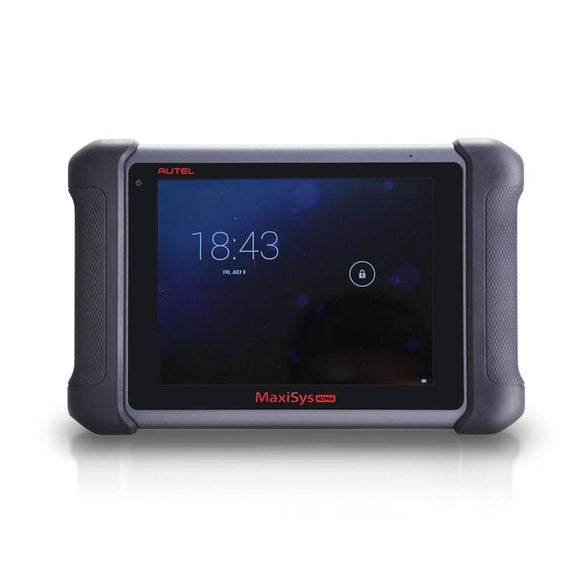

AUTEL MaxiSYS MS906 Auto Diagnostic Scanner Next Generation of Autel MaxiDAS DS708
Product Description
- Autel MAXISYS MS906 Perfect Replacement for Maxidas DS708, contain all function of Maxidas DS708.
- 1 year warranty and 1 year free UPDATE online .
- Android 4.0 Operating System for fast boot-up and multitasking
Features:
*Extraordinarily powerful Samsung Exynos Hexa-core processor
*8.0” 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology
*Internal reliable 32GB SSD for better performance
*Extremely easy-to-use with integrated vehicle communication interface
*Built-in 8-megapixel rear camera with autofocus and flashlight
*802.11b/g/n Wi-Fi to access your favorite web resources
*Unique ergonomic design with rubberized outer protection and a rugged internal housing
*Built-in rechargeable lithium-polymer battery for up to 6 hours of continuous operation
*Open source Android Operating System for fast boot-up and multitasking
*Easy and intuitive navigation makes finding what you need simple and fast
*Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
*Exceptional OE-Level system coverage for all electronic systems
*Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
*Smart AutoVIN technology for identifying vehicles easily
*Automatic system and software updates with real-time push message notifications via Wi-Fi
*Instant remote control tech support anytime, anywhere
*Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
*Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
*One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
*Convenient data management system for managing internal program applications and reviewing data
Specifications:
| Operating System | Android™ 4.4.2, KitKat | |
| Processor | Samsung Exynos 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15) | |
| Memory | 2 GB RAM & 32 GB ROM | |
| Display | 8.0" LED capacitive touch screen with 1024x768P resolution | |
| Connectivity | Wi-Fi (802.11 b/g/n), DB16 DLC, USB 2.0, SD Card (Support up to 32GB) | |
| Camera (rear) | Rear-facing, 8.0 Megapixel, AF with Flashlight | |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) | |
| Audio Input/Output | Microphone, Single Speaker | |
| Power and Battery | 3.7V/5000 mAh lithium-polymer battery, Charging via 12 V AC/DC power supply | |
| Input Voltage | DC/12 V (9-35 V) | |
| Power Consumption | 5 W | |
| Operating Temperature | -10 to 55°C (14 to 131°F) | |
| Storage Temperature | -20 to 70°C (-4 to 158°F) | |
| Housing | Rubberized outer protection and rugged internal housing | |
| Dimensions (W x H x D) | 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0mm (1.4”) | |
| Weight | NW: 0.96 kg (2.12 lb.) |
Difference between Autel MaxiSYS MS906 and Autel MaxiSYS DS708:
| Item Name | Autel MaxiSYS MS906 | Autel MaxiSYS DS708 |
| Appearance |  |
 |
| Brand | Original Autel | Original Autel |
| Language | English | One device two language, English+another(French, German, Portuguese, Spanish and so on) |
| Need PC | No | No |
| Update | Update online one year for free | Update online one year for free |
| OS | Android 4.0 Operating System | Windows CE Operating System |
| Support Cars | Most of the European, Asian,Amercian cars | Most of European, Asian,Amercian cars |
| Programming | No | No |
| ECU Coding | No | No |
| Memory | Memory 2GB RAM & 32GB On-board Memory | Max.4 Gigabyte SD card |
|
Attention : 1. MS906 work better and run faster than DS708 2.Autel MaxiSYS Pro MS908P support online ECU coding and online programming(but online programming only available to part original software) |
||
Autel MaxiSYS MS906 Package Including:
main unit
Main cable
AC/DC adaptor(12v)
Cigarette Lighter
Lighter Fuse
Honda-3
Nissan-14
Mitsubishi/Hyundai-12+16
Kia-20
Benz-38
BMW-20
VW/AUDI-2+2
Fiat-3
PSA-2
GM/Daewoo-12
Chrysler-16
User Manual
Quick reference guide
Packing List
Compact Disc (CD)
Soft Cloth
Carry case
